OAuth2.0 协议授权码模式与应用系统对接 ​

时序图 ​

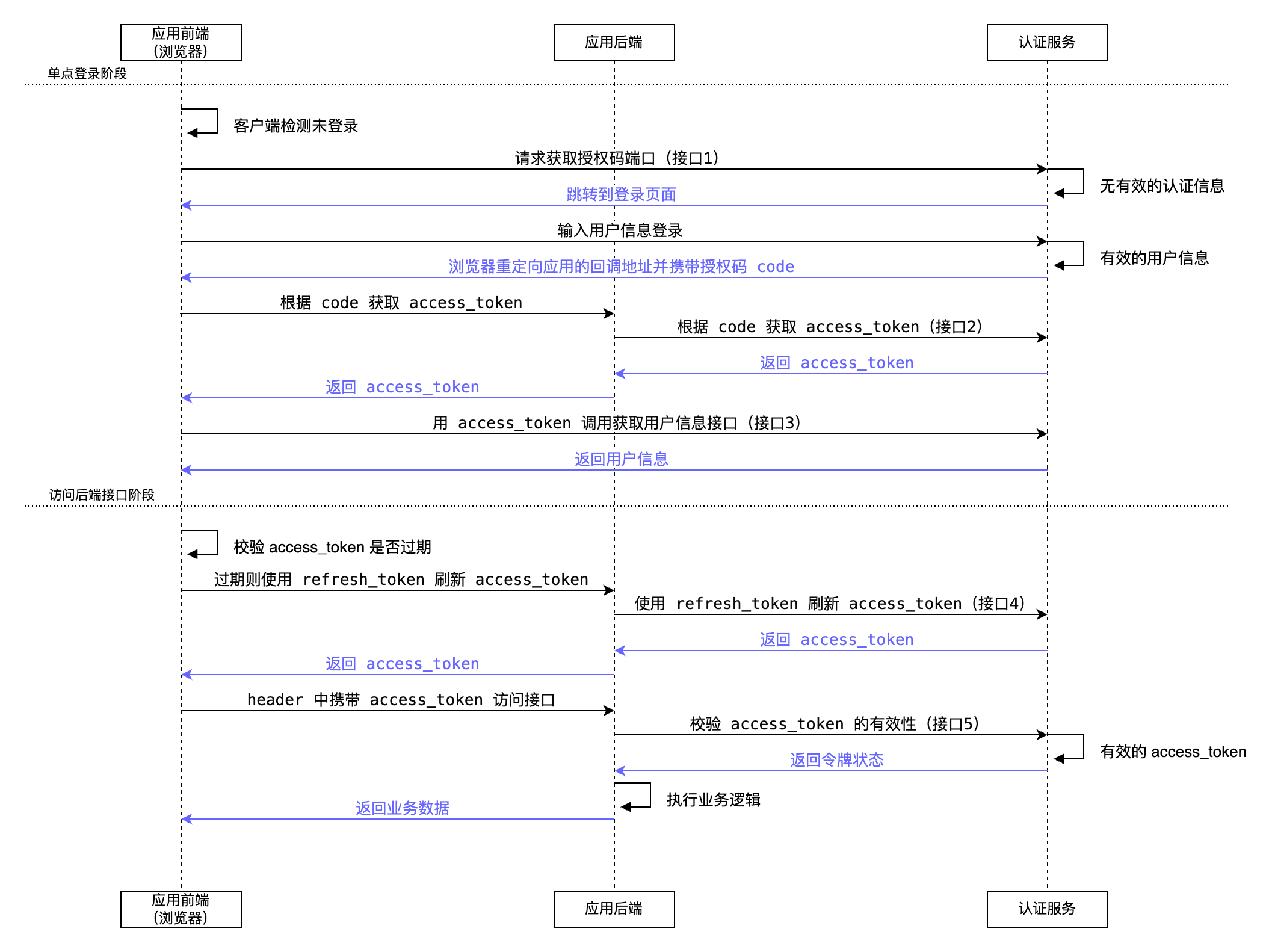

OAuth2授权码模式认证时序图

上图为 OAuth2.0 授权码模式认证时序图，描述了一个应用的授权认证及访问过程。

上图分两个阶段，阶段一为单点认证阶段：

  1. 访问应用系统，应用系统检测未登录。
  2. 请求获取授权码端口 /sso/oauth2.0/authorize。
  3. 系统检测到用户未登录，重定向至登录页面。
  4. 用户输入用户名密码登录。
  5. 认证服务认证通过后携带授权码 code 重定向。
  6. 浏览器跳转至应用。
  7. 应用系统前端调用应用系统后端访问令牌接口。
  8. 后端资源服务服务器再去调用统一认证 /sso/oauth2.0/accessToken 接口获取访问令牌 access_token。因为 client_secret 存储在后端服务器中更为安全。
  9. 认证服务返回访问令牌 access_token 给应用系统后端。
  10. 应用系统前端拿到应用系统后端返回的访问令牌 access_token 后将其缓存在本地。
  11. 应用通过获取用户信息接口 /sso/oauth2.0/profile 获取用户信息。
  12. 认证服务返回用户信息。

阶段二为访问后端接口：

1） 用户操作浏览器访问应用前端，前端需要调用后端接口。

2） 应用系统前端可先检查访问令牌 access_token 是否过期，过期的令牌可通过调用刷新访问令牌的接口，应用系统前端调用应用系统后端的刷新令牌接口。如果检查访问令牌没有过期可以直接到第六步执行访问接口。

3） 应用系统后端再调用统一认证的刷新访问令牌接口/sso/oauth2.0/accessToken 刷新令牌。

4） 认证服务返回访问令牌 access_token 到应用系统后端。

5） 应用系统前端拿到应用系统后端返回的访问令牌 access_token 后将其缓存在本地。

6） 请求应用系统后端接口，并在请求头中带上访问令牌 access_token。

7） 应用系统后端接收到请求后调用统一认证的访问令牌校验接口 /sso/oauth2.0/introspect 进行令牌校验。

8） 校验通过应用系统后端会收到令牌状态、用户信息等返回，之后可继续进行业务的处理。

9） 应用系统前端收到后端返回的业务数据。

浏览器渲染数据显示。

准备工作 ​

在数字底座注册应用，注册时需指定应用访问URL，注册后可获取应用的 client_id 和 client_secret 供后面使用

以下是上述过程中会用到的接口：

获取授权码 ​

请求地址：http://IP:PORT/sso/oauth2.0/authorize

请求方法：GET

描述：授权用户启动身份验证流程，浏览器访问该端口

请求参数：

参数名描述
response_type返回类型为固定值code。
client_id申请的客户端id。
redirect_uri重定向url，认证通过后会重定向回来并以授权码 code 作为请求参数。

请求示例：

http
GET http://IP:PORT/sso/oauth2.0/authorize?response_type=code&client_id=clientid&redirect_uri=http://localhost:7070/demo/org

响应示例：

http
HTTP/1.1 302 Found

Location: http://localhost:7070/demo/org?code=OC-1-RwsfG6bJFuiUaBt0vMTS02rlJgHeeUHf

获取访问令牌 ​

接口地址：http://IP:PORT/sso/oauth2.0/accessToken

请求方法：GET|POST

描述：通过授权码 code 获取访问令牌

请求参数：

参数名描述
grant_type授权类型为固定值authorization_code。
client_id申请的客户端id。
client_secret申请的客户端密钥。
code请求授权返回的授权码code，一个授权码使用一次后便会失效。
redirect_uri重定向url。

响应字段：

字段描述
access_token访问令牌。
refresh_token刷新令牌。
token_type令牌类型。
expires_in过期时间（秒）。
scope权限范围。

请求示例：

http
GET http://IP:PORT/sso/oauth2.0/accessToken?grant_type=authorization_code&client_id=clientid&client_secret=secret&code=OC-1-RwsfG6bJFuiUaBt0vMTS02rlJgHeeUHf&redirect_uri=http://localhost:7070/demo/org

响应示例：

json
{
    "access_token": "AT-1-mGX3XxDMrG2tyw-YYovSdlqsbCETdXd-",
    "refresh_token": "RT-1-B7269kSYS8qnjnnqUe-CKyaocJeHerso",
    "token_type": "Bearer",
    "expires_in": 28800,
    "scope": ""
}

获取用户信息 ​

接口地址：http://IP:PORT/sso/oauth2.0/profile

请求方法：GET|POST

描述：获取认证过的用户信息

请求参数：

参数名描述
access_token访问令牌

响应字段：

字段描述
avator头像url
CAIDCAID
dn由name组成的父子关系列表(倒序)，之间用逗号分隔
email邮箱
guidPath由ID组成的父子关系列表(正序)，之间用逗号分隔
IDNum身份证号
isValidateIE是否为合法的IE版本（针对使用IE的情况）
loginName登录名
loginType登录类型
mobile电话号码
name姓名
oauthClientIdoauth 客户端 id
original是否为原始账号（针对多岗）
originalID原始账号 id
parentID人员父节点id
password密码
personID人员 id
personType人员类型
roles角色
sex性别
tenantID租户 id
tenantLoginName租户登录名
tenantManager是否为租户管理员
tenantName租户名
service授权认证的服务 url
id登录名
client_idoauth 客户端 id

请求示例：

http
GET http://IP:PORT/sso/oauth2.0/profile?access_token=AT-1-mGX3XxDMrG2tyw-YYovSdlqsbCETdXd-

响应示例：

json
{
    "avator": "",
    "caid": "",
    "dn": "cn=系统管理员,o=虚拟组织",
    "email": "",
    "globalManager": true,
    "guidPath": "1598723782640406528,1598723782690738176",
    "idNum": "",
    "loginName": "systemManager",
    "loginType": "loginName",
    "managerLevel": 1,
    "mobile": "13111112222",
    "name": "系统管理员",
    "oauthClientId": "clientid",
    "org.apereo.cas.authentication.Authentication": {
        "authenticationDate": "2024-03-25T03:31:48.413487Z",
        "principal": {
            "@class": "org.apereo.cas.authentication.principal.SimplePrincipal",
            "id": "systemManager",
            "attributes": {
                "avator": "",
                "caid": "",
                "dn": "cn=系统管理员,o=虚拟组织",
                "email": "",
                "globalManager": true,
                "guidPath": "1598723782640406528,1598723782690738176",
                "idNum": "",
                "loginName": "systemManager",
                "loginType": "loginName",
                "managerLevel": 1,
                "mobile": "13111112222",
                "name": "系统管理员",
                "original": true,
                "originalId": "",
                "parentId": "1598723782640406528",
                "password": "$2a$10$gCFWPLF35jyJ4P.5kN1siO.lC0lW/Dg/RMAFvjgq4uLJLYx.CxYHm",
                "personId": "1598723782690738176",
                "personType": "deptPerson",
                "positionId": "",
                "positions": "",
                "roles": "",
                "sex": 1,
                "tenantId": "11111111-1111-1111-1111-111111111113",
                "tenantName": "default",
                "tenantShortName": "default"
            }
        },
        "credentials": [
            {
                "@class": "org.apereo.cas.authentication.metadata.BasicCredentialMetaData",
                "id": "//5zAHkAcwB0AGUAbQBNAGEAbgBhAGcAZQByAA==",
                "credentialClass": "org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential"
            },
            {
                "@class": "org.apereo.cas.authentication.metadata.BasicCredentialMetaData",
                "id": "systemManager",
                "credentialClass": "org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential",
                "properties": {
                    "UserAgent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/122.0.0.0 Safari/537.36 Edg/122.0.0.0",
                    "GeoLocation": {}
                }
            }
        ],
        "attributes": {
            "credentialType": "RememberMeUsernamePasswordCredential",
            "clientIpAddress": "0:0:0:0:0:0:0:1",
            "authenticationDate": 1711337508,
            "authenticationMethod": "y9AuthenticationHandler",
            "successfulAuthenticationHandlers": "y9AuthenticationHandler",
            "serverIpAddress": "127.0.0.1",
            "userAgent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/122.0.0.0 Safari/537.36 Edg/122.0.0.0"
        },
        "successes": {
            "y9AuthenticationHandler": {
                "@class": "org.apereo.cas.authentication.DefaultAuthenticationHandlerExecutionResult",
                "handlerName": "y9AuthenticationHandler",
                "credentialMetaData": {
                    "@class": "org.apereo.cas.authentication.metadata.BasicCredentialMetaData",
                    "id": "systemManager",
                    "credentialClass": "org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential"
                },
                "principal": {
                    "@class": "org.apereo.cas.authentication.principal.SimplePrincipal",
                    "id": "systemManager"
                }
            }
        }
    },
    "org.apereo.cas.services.RegisteredService": {
        "serviceId": "^(https?)://.*",
        "name": "oauthServiceDemo",
        "theme": "y9-apereo",
        "id": 1,
        "description": "oauth Authentication app demo",
        "evaluationOrder": 1002,
        "attributeReleasePolicy": {
            "@class": "org.apereo.cas.services.ReturnAllAttributeReleasePolicy",
            "authorizedToReleaseCredentialPassword": true,
            "authorizedToReleaseProxyGrantingTicket": true
        },
        "logoutUrl": "http://localhost:7055/oauth/public/oauth/callback",
        "clientSecret": "secret",
        "clientId": "clientid",
        "bypassApprovalPrompt": true,
        "generateRefreshToken": true,
        "renewRefreshToken": true,
        "supportedGrantTypes": [
            "refresh_token",
            "password",
            "client_credentials",
            "authorization_code"
        ],
        "supportedResponseTypes": [
            "code",
            "token"
        ]
    },
    "org.apereo.cas.ticket.TicketGrantingTicket": "TGT-1-LZcFE8ouDeZdi-qX0uf1gcXGDCQfWes4dC0AqXqR7AUND-vRHUfhLTqxe5gLpRYJr8U-Tobins-Mac-Studio",
    "org.apereo.cas.validation.Assertion": {
        "primaryAuthentication": {
            "@class": "org.apereo.cas.authentication.DefaultAuthentication",
            "authenticationDate": "2024-03-25T03:31:48.413487Z",
            "principal": {
                "@class": "org.apereo.cas.authentication.principal.SimplePrincipal",
                "id": "systemManager",
                "attributes": {
                    "avator": "",
                    "caid": "",
                    "dn": "cn=系统管理员,o=虚拟组织",
                    "email": "",
                    "globalManager": true,
                    "guidPath": "1598723782640406528,1598723782690738176",
                    "idNum": "",
                    "loginName": "systemManager",
                    "loginType": "loginName",
                    "managerLevel": 1,
                    "mobile": "13111112222",
                    "name": "系统管理员",
                    "original": true,
                    "originalId": "",
                    "parentId": "1598723782640406528",
                    "password": "$2a$10$gCFWPLF35jyJ4P.5kN1siO.lC0lW/Dg/RMAFvjgq4uLJLYx.CxYHm",
                    "personId": "1598723782690738176",
                    "personType": "deptPerson",
                    "positionId": "",
                    "positions": "",
                    "roles": "",
                    "sex": 1,
                    "tenantId": "11111111-1111-1111-1111-111111111113",
                    "tenantName": "default",
                    "tenantShortName": "default"
                }
            },
            "credentials": [
                {
                    "@class": "org.apereo.cas.authentication.metadata.BasicCredentialMetaData",
                    "id": "//5zAHkAcwB0AGUAbQBNAGEAbgBhAGcAZQByAA==",
                    "credentialClass": "org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential"
                },
                {
                    "@class": "org.apereo.cas.authentication.metadata.BasicCredentialMetaData",
                    "id": "systemManager",
                    "credentialClass": "org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential",
                    "properties": {
                        "UserAgent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/122.0.0.0 Safari/537.36 Edg/122.0.0.0",
                        "GeoLocation": {}
                    }
                }
            ],
            "attributes": {
                "credentialType": "RememberMeUsernamePasswordCredential",
                "clientIpAddress": "0:0:0:0:0:0:0:1",
                "authenticationDate": 1711337508,
                "authenticationMethod": "y9AuthenticationHandler",
                "successfulAuthenticationHandlers": "y9AuthenticationHandler",
                "serverIpAddress": "127.0.0.1",
                "userAgent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/122.0.0.0 Safari/537.36 Edg/122.0.0.0",
                "isFromNewLogin": true,
                "longTermAuthenticationRequestTokenUsed": false
            },
            "successes": {
                "y9AuthenticationHandler": {
                    "@class": "org.apereo.cas.authentication.DefaultAuthenticationHandlerExecutionResult",
                    "handlerName": "y9AuthenticationHandler",
                    "credentialMetaData": {
                        "@class": "org.apereo.cas.authentication.metadata.BasicCredentialMetaData",
                        "id": "systemManager",
                        "credentialClass": "org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential"
                    },
                    "principal": {
                        "@class": "org.apereo.cas.authentication.principal.SimplePrincipal",
                        "id": "systemManager"
                    }
                }
            }
        },
        "originalAuthentication": {
            "@class": "org.apereo.cas.authentication.DefaultAuthentication",
            "authenticationDate": "2024-03-25T03:31:48.413487Z",
            "principal": {
                "@class": "org.apereo.cas.authentication.principal.SimplePrincipal",
                "id": "systemManager",
                "attributes": {
                    "avator": "",
                    "caid": "",
                    "dn": "cn=系统管理员,o=虚拟组织",
                    "email": "",
                    "globalManager": true,
                    "guidPath": "1598723782640406528,1598723782690738176",
                    "idNum": "",
                    "loginName": "systemManager",
                    "loginType": "loginName",
                    "managerLevel": 1,
                    "mobile": "13111112222",
                    "name": "系统管理员",
                    "original": true,
                    "originalId": "",
                    "parentId": "1598723782640406528",
                    "password": "$2a$10$gCFWPLF35jyJ4P.5kN1siO.lC0lW/Dg/RMAFvjgq4uLJLYx.CxYHm",
                    "personId": "1598723782690738176",
                    "personType": "deptPerson",
                    "positionId": "",
                    "positions": "",
                    "roles": "",
                    "sex": 1,
                    "tenantId": "11111111-1111-1111-1111-111111111113",
                    "tenantName": "default",
                    "tenantShortName": "default"
                }
            },
            "credentials": [
                {
                    "@class": "org.apereo.cas.authentication.metadata.BasicCredentialMetaData",
                    "id": "//5zAHkAcwB0AGUAbQBNAGEAbgBhAGcAZQByAA==",
                    "credentialClass": "org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential"
                },
                {
                    "@class": "org.apereo.cas.authentication.metadata.BasicCredentialMetaData",
                    "id": "systemManager",
                    "credentialClass": "org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential",
                    "properties": {
                        "UserAgent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/122.0.0.0 Safari/537.36 Edg/122.0.0.0",
                        "GeoLocation": {}
                    }
                }
            ],
            "attributes": {
                "credentialType": "RememberMeUsernamePasswordCredential",
                "clientIpAddress": "0:0:0:0:0:0:0:1",
                "authenticationDate": 1711337508,
                "authenticationMethod": "y9AuthenticationHandler",
                "successfulAuthenticationHandlers": "y9AuthenticationHandler",
                "serverIpAddress": "127.0.0.1",
                "userAgent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/122.0.0.0 Safari/537.36 Edg/122.0.0.0"
            },
            "successes": {
                "y9AuthenticationHandler": {
                    "@class": "org.apereo.cas.authentication.DefaultAuthenticationHandlerExecutionResult",
                    "handlerName": "y9AuthenticationHandler",
                    "credentialMetaData": {
                        "@class": "org.apereo.cas.authentication.metadata.BasicCredentialMetaData",
                        "id": "systemManager",
                        "credentialClass": "org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential"
                    },
                    "principal": {
                        "@class": "org.apereo.cas.authentication.principal.SimplePrincipal",
                        "id": "systemManager"
                    }
                }
            }
        },
        "chainedAuthentications": {
            "@class": "org.apereo.cas.authentication.DefaultAuthentication",
            "authenticationDate": "2024-03-25T03:31:48.413487Z",
            "principal": {
                "@class": "org.apereo.cas.authentication.principal.SimplePrincipal",
                "id": "systemManager",
                "attributes": {
                    "avator": "",
                    "caid": "",
                    "dn": "cn=系统管理员,o=虚拟组织",
                    "email": "",
                    "globalManager": true,
                    "guidPath": "1598723782640406528,1598723782690738176",
                    "idNum": "",
                    "loginName": "systemManager",
                    "loginType": "loginName",
                    "managerLevel": 1,
                    "mobile": "13111112222",
                    "name": "系统管理员",
                    "original": true,
                    "originalId": "",
                    "parentId": "1598723782640406528",
                    "password": "$2a$10$gCFWPLF35jyJ4P.5kN1siO.lC0lW/Dg/RMAFvjgq4uLJLYx.CxYHm",
                    "personId": "1598723782690738176",
                    "personType": "deptPerson",
                    "positionId": "",
                    "positions": "",
                    "roles": "",
                    "sex": 1,
                    "tenantId": "11111111-1111-1111-1111-111111111113",
                    "tenantName": "default",
                    "tenantShortName": "default"
                }
            },
            "credentials": [
                {
                    "@class": "org.apereo.cas.authentication.metadata.BasicCredentialMetaData",
                    "id": "//5zAHkAcwB0AGUAbQBNAGEAbgBhAGcAZQByAA==",
                    "credentialClass": "org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential"
                },
                {
                    "@class": "org.apereo.cas.authentication.metadata.BasicCredentialMetaData",
                    "id": "systemManager",
                    "credentialClass": "org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential",
                    "properties": {
                        "UserAgent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/122.0.0.0 Safari/537.36 Edg/122.0.0.0",
                        "GeoLocation": {}
                    }
                }
            ],
            "attributes": {
                "credentialType": "RememberMeUsernamePasswordCredential",
                "clientIpAddress": "0:0:0:0:0:0:0:1",
                "authenticationDate": 1711337508,
                "authenticationMethod": "y9AuthenticationHandler",
                "successfulAuthenticationHandlers": "y9AuthenticationHandler",
                "serverIpAddress": "127.0.0.1",
                "userAgent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/122.0.0.0 Safari/537.36 Edg/122.0.0.0"
            },
            "successes": {
                "y9AuthenticationHandler": {
                    "@class": "org.apereo.cas.authentication.DefaultAuthenticationHandlerExecutionResult",
                    "handlerName": "y9AuthenticationHandler",
                    "credentialMetaData": {
                        "@class": "org.apereo.cas.authentication.metadata.BasicCredentialMetaData",
                        "id": "systemManager",
                        "credentialClass": "org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential"
                    },
                    "principal": {
                        "@class": "org.apereo.cas.authentication.principal.SimplePrincipal",
                        "id": "systemManager"
                    }
                }
            }
        },
        "fromNewLogin": true,
        "service": {
            "@class": "org.apereo.cas.authentication.principal.SimpleWebApplicationServiceImpl",
            "id": "http://localhost:7070/demo/org",
            "originalUrl": "http://localhost:7070/demo/org",
            "principal": "systemManager",
            "source": "service",
            "format": "XML",
            "attributes": {
                "service": "http://localhost:7055/sso/oauth2.0/callbackAuthorize?client_id=clientid&redirect_uri=http%3A%2F%2Flocalhost%3A7070%2Fdemo%2Forg&response_type=code&client_name=CasOAuthClient",
                "response_type": "code",
                "redirect_uri": "http://localhost:7070/demo/org",
                "client_name": "CasOAuthClient",
                "client_id": "clientid"
            }
        },
        "registeredService": {
            "@class": "org.apereo.cas.support.oauth.services.OAuthRegisteredService",
            "serviceId": "^(https?)://.*",
            "name": "oauthServiceDemo",
            "theme": "y9-apereo",
            "id": 1,
            "description": "oauth Authentication app demo",
            "evaluationOrder": 1002,
            "attributeReleasePolicy": {
                "@class": "org.apereo.cas.services.ReturnAllAttributeReleasePolicy",
                "authorizedToReleaseCredentialPassword": true,
                "authorizedToReleaseProxyGrantingTicket": true
            },
            "logoutUrl": "http://localhost:7055/oauth/public/oauth/callback",
            "clientSecret": "secret",
            "clientId": "clientid",
            "bypassApprovalPrompt": true,
            "generateRefreshToken": true,
            "renewRefreshToken": true,
            "supportedGrantTypes": [
                "refresh_token",
                "password",
                "client_credentials",
                "authorization_code"
            ],
            "supportedResponseTypes": [
                "code",
                "token"
            ]
        },
        "context": {
            "org.apereo.cas.ticket.TicketGrantingTicket": "TGT-1-LZcFE8ouDeZdi-qX0uf1gcXGDCQfWes4dC0AqXqR7AUND-vRHUfhLTqxe5gLpRYJr8U-Tobins-Mac-Studio"
        }
    },
    "original": true,
    "originalId": "",
    "parentId": "1598723782640406528",
    "password": "$2a$10$gCFWPLF35jyJ4P.5kN1siO.lC0lW/Dg/RMAFvjgq4uLJLYx.CxYHm",
    "personId": "1598723782690738176",
    "personType": "deptPerson",
    "positionId": "",
    "positions": "",
    "roles": "",
    "sex": 1,
    "tenantId": "11111111-1111-1111-1111-111111111113",
    "tenantName": "default",
    "tenantShortName": "default",
    "service": "http://localhost:7070/demo/org",
    "id": "systemManager",
    "client_id": "clientid"
}

刷新访问令牌 ​

接口地址：http://IP:PORT/sso/oauth2.0/accessToken

请求方法：GET|POST

描述：当访问令牌过期了可通过 refresh_token 去获取新的访问令牌

请求参数：

参数名描述
grant_type授权类型为固定值 refresh_token
client_id申请的客户端 id
client_secret申请的客户端密钥
refresh_token刷新令牌

请求示例：

http
GET http://IP:PORT/sso/oauth2.0/accessToken?grant_type=refresh_token&client_id=clientid&client_secret=secret&refresh_token=RT-1-B7269kSYS8qnjnnqUe-CKyaocJeHerso

响应示例：

json
{
    "access_token": "AT-2-43dmL9VPWjK0v-ghzdX7hm4VKZgKRpCJ",
    "refresh_token": "RT-2-XZhZr4i74OcawtxLJ9p-aMQ-UkFIj7Wg",
    "token_type": "Bearer",
    "expires_in": 28800,
    "scope": ""
}

访问令牌校验 ​

接口地址：http://IP:PORT/sso/oauth2.0/introspect

请求方法：GET|POST

描述：查询访问令牌 access_token 的状态，其中应用的凭证 client_id 和 client_secret 需以 Basic Auth 的形式提供

请求参数：

参数名描述
token访问令牌 access_token

请求头：

参数名描述
Authorization应用的凭证，参数值为 Basic {Auth} 其中 {Auth} 为经过 base64 编码的 client_id 和 client_secret，即 base64_encode(client_id:client_secret)

请求示例：

http
GET http://IP:PORT/sso/oauth2.0/introspect

Authorization: Basic Y2xpZW50aWQ6c2VjcmV0

Content-Type: application/x-www-form-urlencoded

token=AT-80-YwO-UIy7ZkDaNHPQRZv5WE8nSFsBiOn7

响应示例：

json
{
    "token": "AT-2-43dmL9VPWjK0v-ghzdX7hm4VKZgKRpCJ",
    "active": true,
    "sub": "systemManager",
    "scope": "CAS",
    "iat": 1711338036,
    "exp": 1711366836,
    "realmName": "y9AuthenticationHandler",
    "uniqueSecurityName": "systemManager",
    "tokenType": "Bearer",
    "aud": "clientid",
    "attr": "{\"oauthClientId\":\"clientid\",\"loginType\":\"loginName\",\"roles\":\"\",\"org.apereo.cas.validation.Assertion\":{\"primaryAuthentication\":{\"@class\":\"org.apereo.cas.authentication.DefaultAuthentication\",\"authenticationDate\":\"2024-03-25T03:31:48.413487Z\",\"principal\":{\"@class\":\"org.apereo.cas.authentication.principal.SimplePrincipal\",\"id\":\"systemManager\",\"attributes\":{\"avator\":[\"\"],\"caid\":[\"\"],\"dn\":[\"cn=系统管理员,o=虚拟组织\"],\"email\":[\"\"],\"globalManager\":[true],\"guidPath\":[\"1598723782640406528,1598723782690738176\"],\"idNum\":[\"\"],\"loginName\":[\"systemManager\"],\"loginType\":[\"loginName\"],\"managerLevel\":[1],\"mobile\":[\"13111112222\"],\"name\":[\"系统管理员\"],\"original\":[true],\"originalId\":[\"\"],\"parentId\":[\"1598723782640406528\"],\"password\":[\"$2a$10$gCFWPLF35jyJ4P.5kN1siO.lC0lW/Dg/RMAFvjgq4uLJLYx.CxYHm\"],\"personId\":[\"1598723782690738176\"],\"personType\":[\"deptPerson\"],\"positionId\":[\"\"],\"positions\":[\"\"],\"roles\":[\"\"],\"sex\":[1],\"tenantId\":[\"11111111-1111-1111-1111-111111111113\"],\"tenantName\":[\"default\"],\"tenantShortName\":[\"default\"]}},\"warnings\":[],\"credentials\":[{\"@class\":\"org.apereo.cas.authentication.metadata.BasicCredentialMetaData\",\"id\":\"//5zAHkAcwB0AGUAbQBNAGEAbgBhAGcAZQByAA==\",\"credentialClass\":\"org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential\",\"properties\":{}},{\"@class\":\"org.apereo.cas.authentication.metadata.BasicCredentialMetaData\",\"id\":\"systemManager\",\"credentialClass\":\"org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential\",\"properties\":{\"UserAgent\":\"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/122.0.0.0 Safari/537.36 Edg/122.0.0.0\",\"GeoLocation\":{\"latitude\":null,\"longitude\":null,\"accuracy\":null,\"timestamp\":null,\"valid\":false}}}],\"attributes\":{\"credentialType\":[\"RememberMeUsernamePasswordCredential\"],\"clientIpAddress\":[\"0:0:0:0:0:0:0:1\"],\"authenticationDate\":[1711337508],\"authenticationMethod\":[\"y9AuthenticationHandler\"],\"successfulAuthenticationHandlers\":[\"y9AuthenticationHandler\"],\"serverIpAddress\":[\"127.0.0.1\"],\"userAgent\":[\"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/122.0.0.0 Safari/537.36 Edg/122.0.0.0\"],\"isFromNewLogin\":[true],\"longTermAuthenticationRequestTokenUsed\":[false]},\"successes\":{\"y9AuthenticationHandler\":{\"@class\":\"org.apereo.cas.authentication.DefaultAuthenticationHandlerExecutionResult\",\"handlerName\":\"y9AuthenticationHandler\",\"credentialMetaData\":{\"@class\":\"org.apereo.cas.authentication.metadata.BasicCredentialMetaData\",\"id\":\"systemManager\",\"credentialClass\":\"org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential\",\"properties\":{}},\"principal\":{\"@class\":\"org.apereo.cas.authentication.principal.SimplePrincipal\",\"id\":\"systemManager\",\"attributes\":{}},\"warnings\":[]}},\"failures\":{}},\"originalAuthentication\":{\"@class\":\"org.apereo.cas.authentication.DefaultAuthentication\",\"authenticationDate\":\"2024-03-25T03:31:48.413487Z\",\"principal\":{\"@class\":\"org.apereo.cas.authentication.principal.SimplePrincipal\",\"id\":\"systemManager\",\"attributes\":{\"avator\":[\"\"],\"caid\":[\"\"],\"dn\":[\"cn=系统管理员,o=虚拟组织\"],\"email\":[\"\"],\"globalManager\":[true],\"guidPath\":[\"1598723782640406528,1598723782690738176\"],\"idNum\":[\"\"],\"loginName\":[\"systemManager\"],\"loginType\":[\"loginName\"],\"managerLevel\":[1],\"mobile\":[\"13111112222\"],\"name\":[\"系统管理员\"],\"original\":[true],\"originalId\":[\"\"],\"parentId\":[\"1598723782640406528\"],\"password\":[\"$2a$10$gCFWPLF35jyJ4P.5kN1siO.lC0lW/Dg/RMAFvjgq4uLJLYx.CxYHm\"],\"personId\":[\"1598723782690738176\"],\"personType\":[\"deptPerson\"],\"positionId\":[\"\"],\"positions\":[\"\"],\"roles\":[\"\"],\"sex\":[1],\"tenantId\":[\"11111111-1111-1111-1111-111111111113\"],\"tenantName\":[\"default\"],\"tenantShortName\":[\"default\"]}},\"warnings\":[],\"credentials\":[{\"@class\":\"org.apereo.cas.authentication.metadata.BasicCredentialMetaData\",\"id\":\"//5zAHkAcwB0AGUAbQBNAGEAbgBhAGcAZQByAA==\",\"credentialClass\":\"org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential\",\"properties\":{}},{\"@class\":\"org.apereo.cas.authentication.metadata.BasicCredentialMetaData\",\"id\":\"systemManager\",\"credentialClass\":\"org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential\",\"properties\":{\"UserAgent\":\"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/122.0.0.0 Safari/537.36 Edg/122.0.0.0\",\"GeoLocation\":{\"latitude\":null,\"longitude\":null,\"accuracy\":null,\"timestamp\":null,\"valid\":false}}}],\"attributes\":{\"credentialType\":[\"RememberMeUsernamePasswordCredential\"],\"clientIpAddress\":[\"0:0:0:0:0:0:0:1\"],\"authenticationDate\":[1711337508],\"authenticationMethod\":[\"y9AuthenticationHandler\"],\"successfulAuthenticationHandlers\":[\"y9AuthenticationHandler\"],\"serverIpAddress\":[\"127.0.0.1\"],\"userAgent\":[\"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/122.0.0.0 Safari/537.36 Edg/122.0.0.0\"]},\"successes\":{\"y9AuthenticationHandler\":{\"@class\":\"org.apereo.cas.authentication.DefaultAuthenticationHandlerExecutionResult\",\"handlerName\":\"y9AuthenticationHandler\",\"credentialMetaData\":{\"@class\":\"org.apereo.cas.authentication.metadata.BasicCredentialMetaData\",\"id\":\"systemManager\",\"credentialClass\":\"org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential\",\"properties\":{}},\"principal\":{\"@class\":\"org.apereo.cas.authentication.principal.SimplePrincipal\",\"id\":\"systemManager\",\"attributes\":{}},\"warnings\":[]}},\"failures\":{}},\"chainedAuthentications\":[{\"@class\":\"org.apereo.cas.authentication.DefaultAuthentication\",\"authenticationDate\":\"2024-03-25T03:31:48.413487Z\",\"principal\":{\"@class\":\"org.apereo.cas.authentication.principal.SimplePrincipal\",\"id\":\"systemManager\",\"attributes\":{\"avator\":[\"\"],\"caid\":[\"\"],\"dn\":[\"cn=系统管理员,o=虚拟组织\"],\"email\":[\"\"],\"globalManager\":[true],\"guidPath\":[\"1598723782640406528,1598723782690738176\"],\"idNum\":[\"\"],\"loginName\":[\"systemManager\"],\"loginType\":[\"loginName\"],\"managerLevel\":[1],\"mobile\":[\"13111112222\"],\"name\":[\"系统管理员\"],\"original\":[true],\"originalId\":[\"\"],\"parentId\":[\"1598723782640406528\"],\"password\":[\"$2a$10$gCFWPLF35jyJ4P.5kN1siO.lC0lW/Dg/RMAFvjgq4uLJLYx.CxYHm\"],\"personId\":[\"1598723782690738176\"],\"personType\":[\"deptPerson\"],\"positionId\":[\"\"],\"positions\":[\"\"],\"roles\":[\"\"],\"sex\":[1],\"tenantId\":[\"11111111-1111-1111-1111-111111111113\"],\"tenantName\":[\"default\"],\"tenantShortName\":[\"default\"]}},\"warnings\":[],\"credentials\":[{\"@class\":\"org.apereo.cas.authentication.metadata.BasicCredentialMetaData\",\"id\":\"//5zAHkAcwB0AGUAbQBNAGEAbgBhAGcAZQByAA==\",\"credentialClass\":\"org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential\",\"properties\":{}},{\"@class\":\"org.apereo.cas.authentication.metadata.BasicCredentialMetaData\",\"id\":\"systemManager\",\"credentialClass\":\"org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential\",\"properties\":{\"UserAgent\":\"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/122.0.0.0 Safari/537.36 Edg/122.0.0.0\",\"GeoLocation\":{\"latitude\":null,\"longitude\":null,\"accuracy\":null,\"timestamp\":null,\"valid\":false}}}],\"attributes\":{\"credentialType\":[\"RememberMeUsernamePasswordCredential\"],\"clientIpAddress\":[\"0:0:0:0:0:0:0:1\"],\"authenticationDate\":[1711337508],\"authenticationMethod\":[\"y9AuthenticationHandler\"],\"successfulAuthenticationHandlers\":[\"y9AuthenticationHandler\"],\"serverIpAddress\":[\"127.0.0.1\"],\"userAgent\":[\"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/122.0.0.0 Safari/537.36 Edg/122.0.0.0\"]},\"successes\":{\"y9AuthenticationHandler\":{\"@class\":\"org.apereo.cas.authentication.DefaultAuthenticationHandlerExecutionResult\",\"handlerName\":\"y9AuthenticationHandler\",\"credentialMetaData\":{\"@class\":\"org.apereo.cas.authentication.metadata.BasicCredentialMetaData\",\"id\":\"systemManager\",\"credentialClass\":\"org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential\",\"properties\":{}},\"principal\":{\"@class\":\"org.apereo.cas.authentication.principal.SimplePrincipal\",\"id\":\"systemManager\",\"attributes\":{}},\"warnings\":[]}},\"failures\":{}}],\"fromNewLogin\":true,\"service\":{\"@class\":\"org.apereo.cas.authentication.principal.SimpleWebApplicationServiceImpl\",\"id\":\"http://localhost:7070/demo/org\",\"originalUrl\":\"http://localhost:7070/demo/org\",\"artifactId\":null,\"principal\":\"systemManager\",\"source\":\"service\",\"loggedOutAlready\":false,\"format\":\"XML\",\"attributes\":{\"service\":[\"http://localhost:7055/sso/oauth2.0/callbackAuthorize?client_id=clientid&redirect_uri=http%3A%2F%2Flocalhost%3A7070%2Fdemo%2Forg&response_type=code&client_name=CasOAuthClient\"],\"response_type\":[\"code\"],\"redirect_uri\":[\"http://localhost:7070/demo/org\"],\"client_name\":[\"CasOAuthClient\"],\"client_id\":[\"clientid\"]}},\"registeredService\":{\"@class\":\"org.apereo.cas.support.oauth.services.OAuthRegisteredService\",\"serviceId\":\"^(https?)://.*\",\"name\":\"oauthServiceDemo\",\"theme\":\"y9-apereo\",\"id\":1,\"description\":\"oauth Authentication app demo\",\"evaluationOrder\":1002,\"attributeReleasePolicy\":{\"@class\":\"org.apereo.cas.services.ReturnAllAttributeReleasePolicy\",\"authorizedToReleaseCredentialPassword\":true,\"authorizedToReleaseProxyGrantingTicket\":true},\"logoutUrl\":\"http://localhost:7055/oauth/public/oauth/callback\",\"clientSecret\":\"secret\",\"clientId\":\"clientid\",\"bypassApprovalPrompt\":true,\"generateRefreshToken\":true,\"renewRefreshToken\":true,\"supportedGrantTypes\":[\"refresh_token\",\"password\",\"client_credentials\",\"authorization_code\"],\"supportedResponseTypes\":[\"code\",\"token\"]},\"context\":{\"org.apereo.cas.ticket.TicketGrantingTicket\":\"TGT-1-LZcFE8ouDeZdi-qX0uf1gcXGDCQfWes4dC0AqXqR7AUND-vRHUfhLTqxe5gLpRYJr8U-Tobins-Mac-Studio\"}},\"dn\":\"cn=系统管理员,o=虚拟组织\",\"managerLevel\":1,\"password\":\"$2a$10$gCFWPLF35jyJ4P.5kN1siO.lC0lW/Dg/RMAFvjgq4uLJLYx.CxYHm\",\"globalManager\":true,\"tenantName\":\"default\",\"org.apereo.cas.authentication.Authentication\":{\"authenticationDate\":\"2024-03-25T03:31:48.413487Z\",\"principal\":{\"@class\":\"org.apereo.cas.authentication.principal.SimplePrincipal\",\"id\":\"systemManager\",\"attributes\":{\"avator\":[\"\"],\"caid\":[\"\"],\"dn\":[\"cn=系统管理员,o=虚拟组织\"],\"email\":[\"\"],\"globalManager\":[true],\"guidPath\":[\"1598723782640406528,1598723782690738176\"],\"idNum\":[\"\"],\"loginName\":[\"systemManager\"],\"loginType\":[\"loginName\"],\"managerLevel\":[1],\"mobile\":[\"13111112222\"],\"name\":[\"系统管理员\"],\"original\":[true],\"originalId\":[\"\"],\"parentId\":[\"1598723782640406528\"],\"password\":[\"$2a$10$gCFWPLF35jyJ4P.5kN1siO.lC0lW/Dg/RMAFvjgq4uLJLYx.CxYHm\"],\"personId\":[\"1598723782690738176\"],\"personType\":[\"deptPerson\"],\"positionId\":[\"\"],\"positions\":[\"\"],\"roles\":[\"\"],\"sex\":[1],\"tenantId\":[\"11111111-1111-1111-1111-111111111113\"],\"tenantName\":[\"default\"],\"tenantShortName\":[\"default\"]}},\"warnings\":[],\"credentials\":[{\"@class\":\"org.apereo.cas.authentication.metadata.BasicCredentialMetaData\",\"id\":\"//5zAHkAcwB0AGUAbQBNAGEAbgBhAGcAZQByAA==\",\"credentialClass\":\"org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential\",\"properties\":{}},{\"@class\":\"org.apereo.cas.authentication.metadata.BasicCredentialMetaData\",\"id\":\"systemManager\",\"credentialClass\":\"org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential\",\"properties\":{\"UserAgent\":\"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/122.0.0.0 Safari/537.36 Edg/122.0.0.0\",\"GeoLocation\":{\"latitude\":null,\"longitude\":null,\"accuracy\":null,\"timestamp\":null,\"valid\":false}}}],\"attributes\":{\"credentialType\":[\"RememberMeUsernamePasswordCredential\"],\"clientIpAddress\":[\"0:0:0:0:0:0:0:1\"],\"authenticationDate\":[1711337508],\"authenticationMethod\":[\"y9AuthenticationHandler\"],\"successfulAuthenticationHandlers\":[\"y9AuthenticationHandler\"],\"serverIpAddress\":[\"127.0.0.1\"],\"userAgent\":[\"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/122.0.0.0 Safari/537.36 Edg/122.0.0.0\"]},\"successes\":{\"y9AuthenticationHandler\":{\"@class\":\"org.apereo.cas.authentication.DefaultAuthenticationHandlerExecutionResult\",\"handlerName\":\"y9AuthenticationHandler\",\"credentialMetaData\":{\"@class\":\"org.apereo.cas.authentication.metadata.BasicCredentialMetaData\",\"id\":\"systemManager\",\"credentialClass\":\"org.apereo.cas.authentication.credential.RememberMeUsernamePasswordCredential\",\"properties\":{}},\"principal\":{\"@class\":\"org.apereo.cas.authentication.principal.SimplePrincipal\",\"id\":\"systemManager\",\"attributes\":{}},\"warnings\":[]}},\"failures\":{}},\"caid\":\"\",\"loginName\":\"systemManager\",\"personType\":\"deptPerson\",\"idNum\":\"\",\"org.apereo.cas.ticket.TicketGrantingTicket\":\"TGT-1-LZcFE8ouDeZdi-qX0uf1gcXGDCQfWes4dC0AqXqR7AUND-vRHUfhLTqxe5gLpRYJr8U-Tobins-Mac-Studio\",\"email\":\"\",\"original\":true,\"sex\":1,\"guidPath\":\"1598723782640406528,1598723782690738176\",\"mobile\":\"13111112222\",\"positions\":\"\",\"org.apereo.cas.services.RegisteredService\":{\"serviceId\":\"^(https?)://.*\",\"name\":\"oauthServiceDemo\",\"theme\":\"y9-apereo\",\"id\":1,\"description\":\"oauth Authentication app demo\",\"evaluationOrder\":1002,\"attributeReleasePolicy\":{\"@class\":\"org.apereo.cas.services.ReturnAllAttributeReleasePolicy\",\"authorizedToReleaseCredentialPassword\":true,\"authorizedToReleaseProxyGrantingTicket\":true},\"logoutUrl\":\"http://localhost:7055/oauth/public/oauth/callback\",\"clientSecret\":\"secret\",\"clientId\":\"clientid\",\"bypassApprovalPrompt\":true,\"generateRefreshToken\":true,\"renewRefreshToken\":true,\"supportedGrantTypes\":[\"refresh_token\",\"password\",\"client_credentials\",\"authorization_code\"],\"supportedResponseTypes\":[\"code\",\"token\"]},\"parentId\":\"1598723782640406528\",\"positionId\":\"\",\"name\":\"系统管理员\",\"tenantId\":\"11111111-1111-1111-1111-111111111113\",\"avator\":\"\",\"personId\":\"1598723782690738176\",\"originalId\":\"\",\"tenantShortName\":\"default\"}",
    "client_id": "clientid",
    "grant_type": "refresh_token"
}

Released under the GPL-3.0 License.

Copyright © 2024-present 北京有生博大软件股份有限公司
